Hydraulic pumps are one of the most crucial components in hydraulic systems, as their main function is to convert mechanical energy into hydraulic pressure, which then powers the hydraulic system's actuators. Depending on the working principle and structural form, hydraulic pumps come in several types. Common hydraulic pump types include gear pumps, vane pumps, and piston pumps. Each pump type has its own working principle, application range, and performance characteristics. In this article, we will explore the working principles of these three hydraulic pumps to help you better understand how hydraulic pumps function.
1. Classification of Hydraulic Pumps
(1) By Flow Adjustment Method:
Hydraulic pumps can be classified into variable pumps and fixed-displacement pumps based on their flow adjustment methods.
Variable Pump: The output flow of a variable pump can be adjusted according to the system's requirements, making it suitable for systems where flow changes with operating conditions.
Fixed-Displacement Pump: A fixed-displacement pump delivers a constant flow regardless of operating conditions, making it suitable for applications where a stable flow is required.
(2) By Pump Structure Type:
The structure type of a hydraulic pump determines its performance. The common types of hydraulic pumps include gear pumps, vane pumps, and piston pumps.
Gear Pump: A gear pump is simple, compact, cost-effective, and has low requirements for oil cleanliness. It is used in low-pressure systems. Its main advantage is low cost and simple manufacturing, making it suitable for applications with large flow demands but low accuracy requirements. However, gear pumps are more susceptible to wear, leading to leakage and less stable performance compared to other types of pumps.
Vane Pump: Vane pumps offer higher volumetric efficiency, smoother flow, lower noise, and stable operation, making them suitable for medium-pressure hydraulic systems. They are more complex and expensive than gear pumps, but they outperform gear pumps in volumetric efficiency and noise control. However, vane pumps have higher manufacturing and maintenance costs.
Piston Pump: Piston pumps are the most efficient and are used in high-pressure, high-power hydraulic systems. They offer extremely high volumetric efficiency and low leakage, making them ideal for applications in heavy machinery and mining equipment. However, piston pumps are complex, costly, require high oil cleanliness, and have high manufacturing precision, which increases their operational and maintenance costs.

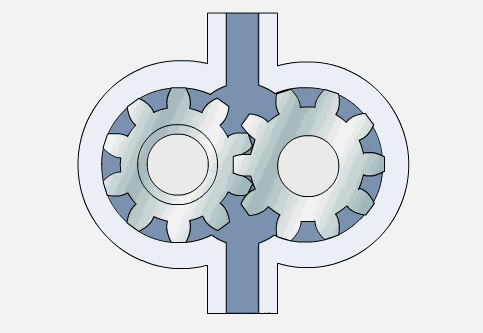

2. Gear Pump Working Principle
A gear pump typically consists of two meshing gears, one of which is driven by a power source (such as a motor), while the other gear rotates in turn. As the gears rotate, one side of the meshing gears increases in volume, creating a vacuum that draws the hydraulic fluid into the pump. As the gears continue to rotate, the fluid is carried into the pressure chamber and discharged through the outlet. The sealing between the gears separates the intake and discharge zones, preventing leakage of hydraulic fluid.
There are two types of gear pumps: external gear pumps and internal gear pumps. Internal gear pumps are more compact, quieter, and have better sealing.
The advantages of gear pumps include simple structure, low cost, and compact size, making them suitable for low-to-medium pressure hydraulic systems. However, they are less efficient, more susceptible to noise and vibration, and have limited pressure ranges.

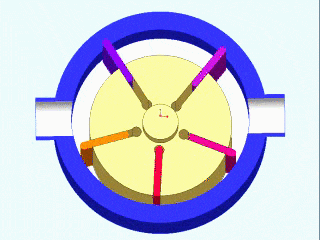

3. Vane Pump Working Principle
Vane pumps are available in single-acting and double-acting types, typically used in applications where smooth flow and low noise are essential.
Double-Acting Vane Pump: The stator of a double-acting vane pump has an elliptical shape, and the rotor is eccentrically mounted inside the stator. The vanes slide radially within the rotor due to centrifugal force. As the rotor turns, the vanes slide along the inner surface of the stator, causing the working chamber between two adjacent vanes to expand and contract, creating a process of fluid intake and discharge. Each full rotation of the rotor completes two cycles of intake and discharge.
Single-Acting Vane Pump: The stator of a single-acting vane pump has a cylindrical shape, and the rotor is also eccentrically mounted. As the rotor turns, the vanes slide, forming a working chamber that expands to take in fluid and contracts to discharge fluid. Each rotation of the rotor completes one intake and one discharge cycle.
Vane pumps offer smooth operation and high efficiency, making them ideal for systems that require steady flow and low noise. However, they are more complex and costlier than gear pumps.

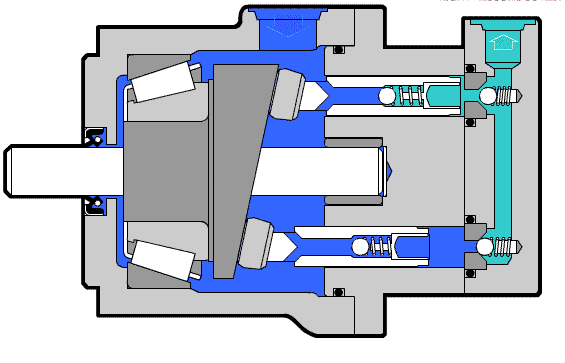

4. Piston Pump Working Principle
Piston pumps are high-efficiency, high-pressure pumps, commonly used in systems that require high pressure and large power. Piston pumps use the reciprocating motion of pistons to achieve fluid intake and discharge, offering very high volumetric efficiency and the ability to operate at high pressures.
The basic principle of a piston pump involves the reciprocating motion of the pistons, which, in conjunction with the intake and discharge valves, completes the fluid intake and discharge process. The pistons move back and forth due to the eccentricity of the pump shaft. When the pistons move outward, the pressure inside the working chamber drops, opening the inlet valve to draw in fluid. As the pistons move inward, the pressure inside the chamber rises, opening the outlet valve to discharge fluid.
Piston pumps are typically classified into axial piston pumps and radial piston pumps.
Axial Piston Pump: This pump type has high volumetric efficiency, a compact design, and is commonly used in medium-to-high-pressure systems. The flow rate of an axial piston pump can be adjusted by changing the tilt angle of the swashplate, allowing it to adapt to load variations.
Radial Piston Pump: Radial piston pumps are used in high-power, heavy-load hydraulic systems. They offer high efficiency, low leakage, and are capable of withstanding high pressures. However, their design and manufacturing requirements are higher, leading to higher costs.
The main advantages of piston pumps are high volumetric efficiency, low leakage, and the ability to handle high-pressure applications. However, their complex structure, high manufacturing costs, and strict oil cleanliness requirements are their main disadvantages.
